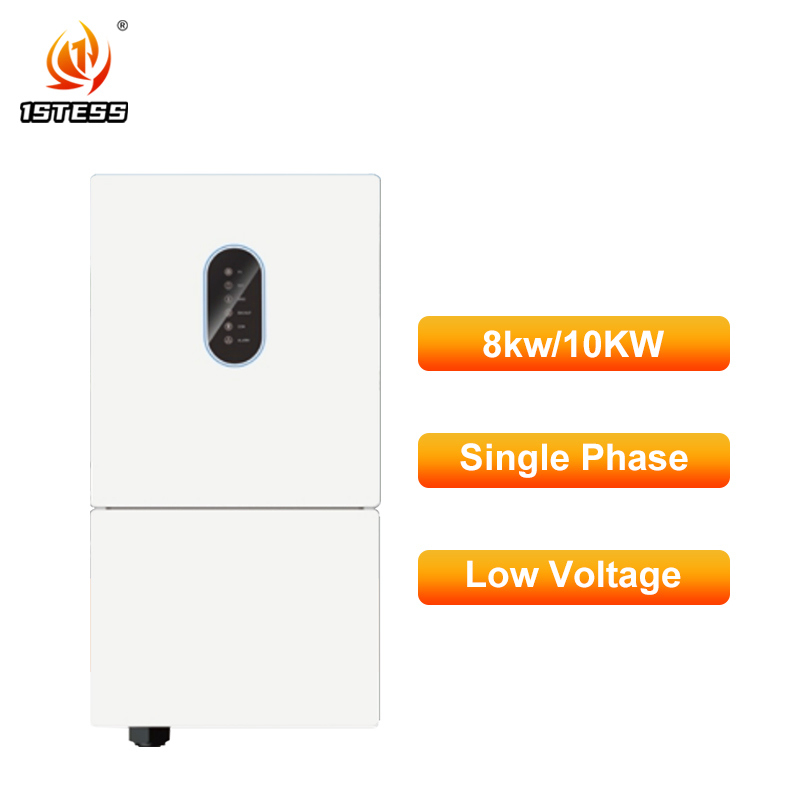

Hybrid Solar Inverter 48V 8000W 5Kw 8Kw Hybrid On Grid Solar Power Inverters

Detalles del producto

Lugar de origen: Porcelana

Nombre de la marca: 1stess

Certificación: CE, IEC

Número de modelo: Las condiciones de los vehículos de motor

Pago y términos de envío

Cantidad de orden mínima: 1 pieza

Precio: To be negotiated

Detalles de empaquetado: Caja de cartón

Tiempo de entrega: 30 dias

Condiciones de pago: LC, T/T

Capacidad de la fuente: 2000 piezas por mes

Consiga el mejor precio
Contacto ahora
Especificaciones
Resaltar:

48V hybrid solar inverter

,

8000W hybrid solar inverter

,

on grid solar power inverter

Modo de carga:
Mppt
Temperatura de funcionamiento:
-10 ° C a 50 ° C
Tipo de inversor:
Inverter fuera de la cuadrícula
Frecuencia:
50Hz/60Hz
Voltaje de salida:
48vdc
Interfaz de comunicación:
RS485/CAN/USB
Modo de carga:
Mppt
Temperatura de funcionamiento:
-10 ° C a 50 ° C
Tipo de inversor:
Inverter fuera de la cuadrícula
Frecuencia:
50Hz/60Hz
Voltaje de salida:
48vdc
Interfaz de comunicación:
RS485/CAN/USB
Descripción
Hybrid Solar Inverter 48V 8000W 5Kw 8Kw Hybrid On Grid Solar Power Inverters
Hybrid Solar Inverter 48V 8000W 5Kw 8Kw Hybrid On Grid Solar Power Inverters
On/Off Grid Solar Inverter Pure Sine Wave Solar Inverter
Product Features:
  • Up to 200% oversizing allowed with 3 MPPTS
  • Support AC coupled solar input
  • Stackable up to 9 units
  • Four application modes
  • Remote configuration and upgrade
  • Support 40-64V Lithium or Lead-acid battery
MODEL SP8KL SP10KL
Nominal Battery Voltage 48VDC 48VDC
Mounting Method Wall Bracket Wall Bracket
Battery Type Lithium-ion/Lead-acid Lithium-ion/Lead-acid
Nos.of MPPT 3 3
Nominal Output Voltage 220V/230/240V,L+N+PE 220V/230/240V,L+N+PE
Battery Voltage Range 40V-64V 40V-64V
Rated Grid Frequency 50Hz/60Hz 50Hz/60Hz
Transfer Time 10ms (typical) 10ms (typical)
Nominal AC Output Power 8000W 10000W
Protection Degree IP66 IP66
Max.AC Output Apparent Power 8800VA 110000VA
Weight 39Kg 39Kg
Dimensions (W*H*D) 420mm*800mm*240mm 420mm*800mm*240mm
Warranty 5 Years/10 Years (Optional) 5 Years/10 Years (Optional)
Display LED,LCD LED,LCD
Technical Parameters:
Hybrid Solar Inverter 48V 8000W 5Kw 8Kw Hybrid On Grid Solar Power Inverters 0 Hybrid Solar Inverter 48V 8000W 5Kw 8Kw Hybrid On Grid Solar Power Inverters 1 Hybrid Solar Inverter 48V 8000W 5Kw 8Kw Hybrid On Grid Solar Power Inverters 2 Hybrid Solar Inverter 48V 8000W 5Kw 8Kw Hybrid On Grid Solar Power Inverters 3 Hybrid Solar Inverter 48V 8000W 5Kw 8Kw Hybrid On Grid Solar Power Inverters 4 Hybrid Solar Inverter 48V 8000W 5Kw 8Kw Hybrid On Grid Solar Power Inverters 5
Canada
What is the operating temperature range?
The inverter functions optimally from -25°C to 60°C, ensuring year-round reliability.
Is it compatible with Canadian grid standards?
Yes, it supports grid voltages of 220V/230V/240V and frequencies of 50Hz/60Hz.
How efficient is the inverter in snowy conditions?
With its high IP66 rating, it is protected against snow and ice ingress.
Does it support lithium batteries?
Yes, it is compatible with modern lithium-ion batteries, ideal for cold climates.
What is the max short-circuit current per MPPT?
It handles up to 40A, ensuring safe operation under fault conditions.
Can it be monitored remotely?
Yes, through Bluetooth and mobile apps, you can access real-time data.
Does it include DC reverse protection?
Yes, it prevents damage from incorrect PV connections.
What is the peak apparent power for backup?
The SP10KL model delivers 20,000VA for 1 second, handling sudden load surges.
Is it certified for safety?
It meets IEC 62109-1&2 standards, ensuring reliable operation.
Why is it a smart choice for Canadians?
Its ability to perform in extreme cold, high efficiency, and robust safety features make it a valuable addition to any solar setup.
India
What is the max PV voltage supported?
The inverter handles up to 600V, making it suitable for high-capacity solar arrays.
Is it compatible with Indian grid voltages?
Yes, it supports 220V/230V/240V, aligning with local standards.
How does it handle frequent voltage fluctuations?
With an adjustable grid voltage range of 150V-300V, it adapts to unstable grids.
Can it work with lead-acid batteries commonly used in India?
Absolutely! It supports both lithium-ion and lead-acid batteries.
What is the MPPT operating voltage range?
It operates between 70V and 540V, optimizing energy harvest.
Does it include fan cooling?
Yes, it uses fan cooling to maintain performance in India's hot summers.
Is the installation process straightforward?
Yes, its wall-mounted design and terminal connections ensure hassle-free setup.
What is the warranty option?
You can select a 5-year or 10-year warranty for extended coverage.
Can it power heavy appliances during outages?
With a peak apparent power of 16,000VA (SP8KL) or 20,000VA (SP10KL), it can handle demanding loads.
Why should Indian homeowners choose this inverter?
Its ability to manage grid instability, high efficiency, and backup capabilities make it perfect for ensuring uninterrupted power.
Mexico
What is the battery charging efficiency?
The inverter achieves up to 95% efficiency during battery-to-AC conversion.
Is it compatible with Mexican grid standards?
Yes, it supports grid voltages and frequencies commonly used in Mexico.
How does it perform in high-temperature environments?
It operates efficiently up to 60°C, making it suitable for Mexico's climate.
Does it support generator integration?
Yes, it seamlessly connects with generators for additional backup.
What is the max charge/discharge power?
For the SP10KL, it reaches 10,000W for both charging and discharging.
Is it protected against dust and water?
With an IP66 rating, it is fully protected against harsh environmental conditions.
Can it handle multiple PV strings?
Yes, with three MPPTs and two strings per MPPT, it maximizes solar energy harvest.
What communication interfaces does it support?
It includes CAN for BMS and RS485 for monitoring.
Does it come with a display?
Yes, it features optional LCD displays and app-based monitoring.
Why is it ideal for Mexican households?
Its high PV input capacity, robust protection features, and adaptability to local grids ensure long-term reliability and savings.
